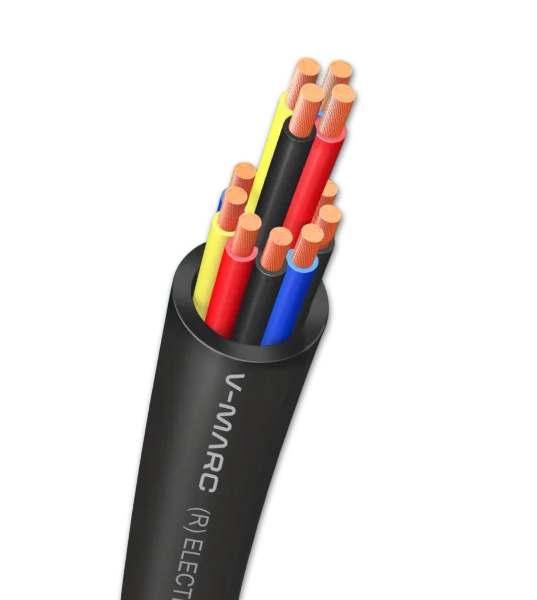

Single & Multicore Copper Cables
PRODUCT CONSTRUCTION
Standards
IS: 694, ICE: 60227, BS: 6500, IS: 5831:1984, IS: 8130:1984
Conductor
The Conductor manufactured from pure electrolytic grade, bright annealed bare copper with more than 101% conductivity makes it an excellent conductor of electricity, thus helps in saving energy.
Insulation
PVC as per IS-5831
Sheath
PVC as per IS-5831
Range
1 core to 25 cores in various conductor sizes from 0.5 sqmm to 2.5 sqmm. For 2, 3 & 4 core sizes we have various conductor sizes ranging from 4.0 sqmm to 50 sqmm.
Description
“V-Marc” single & multi core PVC industrial wires & cables find a wide range of applications in the control panels, appliances, machine tools, machinery and are used in almost every industry.
The conductors drawn from 99.97% bright electrolytic grade copper with more than 101% conductivity are annealed and bunched together. The conductors are insulated with in-house formulated & manufactured PVC compound having high insulation resistance and dielectric strength.
In case of Multicore cables, the insulated cores are laid up to form the core assembly. The insulated cores are coded for ease of identification as per National/International coding practices. The sheathing is provided with a specially formulated PVC compound having high oxygen and temperature index. These properties help in restricting the spread of fire even at very high ambient temperatures.
The Single core cables are manufactured as per IS:694: 2010, in sizes from 0.50 sqmm to 50 sqmm and multicore cables are in sizes 0.50 sqmm to 4.0 sqmm. These sizes carry ISI mark and are duly approved by FIA/TAC. The rest of the sizes generally conform to IS 694: 1990.
