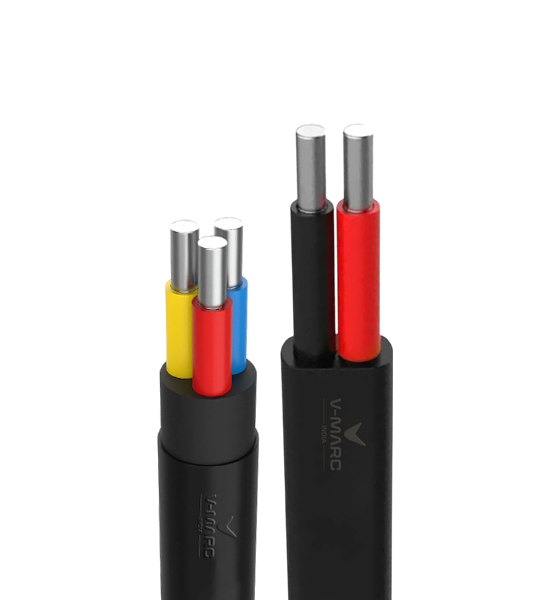

Single & Multicore Aluminium Cables
PRODUCT CONSTRUCTION
Standards
IS: 694, ICE: 60227, BS: 6500, IS: 5831:1984, IS: 8130:1984
Conductor
The Conductors are manufactured from electrolytic grade, bright hard drawn Aluminium which makes it an excellent conductor of electricity, thus helps in saving energy. Conductor upto10 sqmm Solid Circular, Above 10 sqmm Stranded Circular/Sector Shaped.
Insulation
PVC as per IS-5831
Sheath
PVC as per IS-5831
Description
“V-Marc” single & multi core PVC industrial wires & cables find a wide range of applications in the control panels, appliances, machine tools, machinery and are used in almost every industry.
The conductors are drawn from electrolytic grade aluminium conductor. The conductors are insulated with in-house formulated & manufactured PVC compound having high insulation resistance and dielectric strength.
In case of Multicore Cables, the insulated cores are laid up to form the core assembly. The sheathing is provided with a specially formulated PVC compound of high oxygen and temperature index. These properties help in restricting the spread of fire even at very high ambient temperatures.
The Single core and Multicore sheathed cables are manufactured as per IS:694: 2010, in sizes from 1.50 sqmm to 120 sqmm. These sizes carry the prestigious ISI mark and are duly approved by FIA/TAC. The rest of the sizes generally conform to IS 694: 2010.
